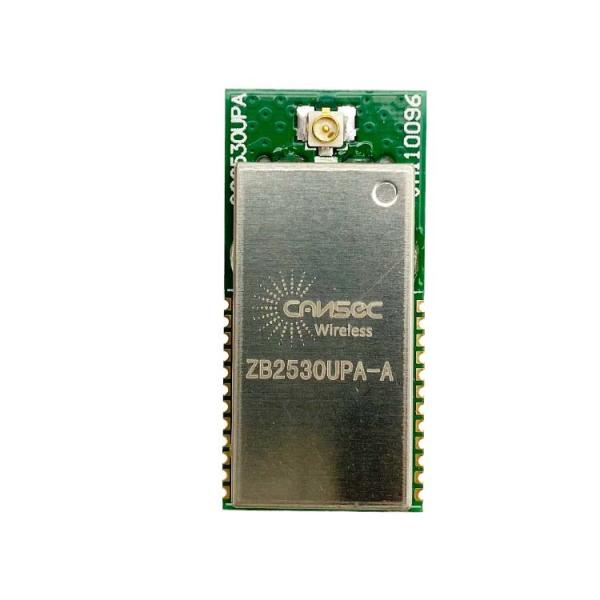

High Power CC2530 Wireless Pa ZigBee Module For 2.4GHz RF Transceiver

Name: High Power CC2530 Wireless Pa ZigBee Module For 24GHz RF Transceiver
Brand: Cansec Wireless
Price: 3.48 USD

Quality High Power CC2530 Wireless Pa ZigBee Module For 2.4GHz RF Transceiver for sale

Brand Name : Cansec Wireless

Model Number : ZB2530UPA-A

Place of Origin : Beijing

MOQ : 100

Price : USD 3.48$ per piece

Payment Terms : T/T

Supply Ability : 2000000 pieces per year

Delivery Time : 3~6 weeks

Packaging Details : Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg

size : 31.6×15×3mm

TX Power : 20dBm

RX sensitivity : -97dBm

TX current : 150mA

RX current : 32mA

Standby current : 2.5uA

Antenna type : PCB Antenna

Chipset : cc2530

Contact Now

High Power CC2530 Wireless Pa ZigBee Module For 2.4GHz RF Transceiver

IoT Control Zigbee High Power Module 2.4GHz Cansec ZB2530UPA-A Ti CC2530 Wireless Pa Zigbee Module With Power Amplifier

Parameter	Min	Max	Unit
Operating Voltage	2.0	3.6	V
TX Power	-	20	dBm
RX Sensitivity	-	-97	dBm
Standby Current	-	2.5	uA
Operating Frequency	2405	2483.5	MHz
Operating Temperature	-30	85	°C

IoT Control Zigbee High Power Module 2.4GHz Cansec ZB2530UPA-A Ti CC2530 Wireless Pa Zigbee Module With Power Amplifier

1. The CC2530 is TI's second-generation ZigBee® / IEEE 802.15.4 RF System-on-Chip (SoC) for the 2.4 GHz unlicensed ISM band. This chip enables industrial-grade applications by offering state-of-theart selectivity/co-existence, excellent link budget, and low voltage operation. The CC2531 is identical to the CC2530 with the addition of a USB interface.

2. CC2591 is a range extender for 2.4-GHz RF transceivers, transmitters and SoC products from Texas Instruments. CC2591 increases the link budget by providing a Power Amplifier (PA) for higher output power and a Low Noise Amplifier (LNA) for improved receiver sensitivity. CC2591 further contains RF switches, RF matching, and a balun for a seamless interface with the CC2530. This allows for simple design of high performance wireless applications.

3. This application note describes how to implement the CC2530 and the CC2591 in the same design. It further describes the expected performance from this combination as well as important factors to consider with respect to the layout and regulatory requirements. The combined CC2530 and CC2591 solution is suitable for systems targeting compliance with FCC CFR47 Part 15.

4. The RF front end of CC2530 is the same as the ones being used in CC2531. The presented results in this application note are therefore also valid for CC2531.

High Power CC2530 Wireless Pa ZigBee Module For 2.4GHz RF Transceiver

FAQ
 Q1: Are you a factory or trade company?
 A1: We are a professional factory with 25 years experience.
 Q2: Can you accept OEM/ODM?
 A2: Sure, we have rich OEM&ODM experience.
 Q3: Do you have quality assurance?
 A3; Each of our products has undergone quality testing and has two years of free after-sales service.
